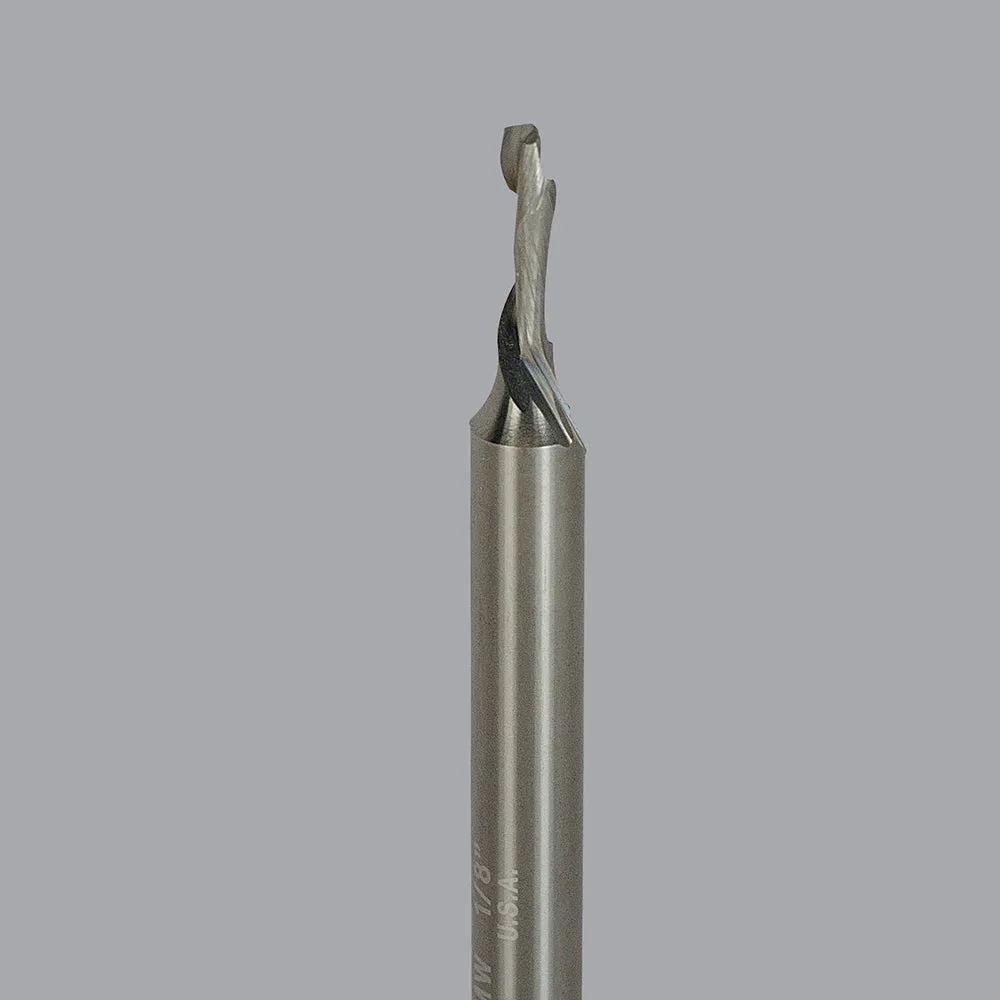

Name: 60-102MW, 0.125" Dia, 0.375" LOC, 0.25" Shank Dia, 2.5" OAL, 1 Flute Max Wear Compression Router Bit
SKU: 369365

Designed for maximum life when cutting in highwear applications. Unique geometries and carbides improve the wear characteristics of the tool under abrasive applications with superior part finish.

Application: Double-Sided Laminated and Veneered Wood Composites

ITEM NO.	CUTTING DIA	LOC	UPCUT FLUTE LOC	SHK DIA	OAL	FLUTES
	0.1250 in	0.3750 in	0.2050 in	0.2500 in	2.5000 in	1
	0.1875 in	0.6250 in	0.3000 in	0.2500 in	2.5000 in	1
	0.2500 in	0.8750 in	0.1750 in	0.2500 in	2.5000 in	1
	0.2500 in	0.8750 in	0.1880 in	0.2500 in	2.5000 in	2
	0.3750 in	1.1250 in	0.2000 in	0.3750 in	3.0000 in	1
	0.3750 in	0.8750 in	0.1880 in	0.3750 in	3.0000 in	2
	0.3750 in	1.1250 in	0.4060 in	0.3750 in	3.0000 in	2
	0.3750 in	1.1250 in	0.5000 in	0.3750 in	3.0000 in	3
	0.3750 in	0.8750 in	0.2000 in	0.3750 in	3.0000 in	3
	0.3750 in	1.1250 in	0.1880 in	0.3750 in	3.0000 in	2
	6.00 mm	22.00 mm	4.00 mm	6.00 mm	64.00 mm	1
	8.00 mm	22.00 mm	4.00 mm	8.00 mm	64.00 mm	2
	10.00 mm	22.00 mm	4.00 mm	10.00 mm	76.00 mm	2
	12.00 mm	28.00 mm	6.00 mm	12.00 mm	76.00 mm	2
	0.5000 in	0.8750 in	0.2000 in	0.5000 in	3.0000 in	2
	0.5000 in	1.1250 in	0.2000 in	0.5000 in	3.0000 in	1
	0.5000 in	1.1250 in	0.5620 in	0.5000 in	3.0000 in	2
	0.5000 in	1.3750 in	0.6250 in	0.5000 in	3.5000 in	2
	0.5000 in	1.6250 in	0.7500 in	0.5000 in	4.0000 in	2
	0.5000 in	1.3750 in	0.2000 in	0.5000 in	3.5000 in	2
	0.5000 in	0.8750 in	0.2000 in	0.5000 in	3.0000 in	3
	0.5000 in	1.3750 in	0.2000 in	0.5000 in	3.5000 in	3
	0.5000 in	2.1250 in	1.0000 in	0.5000 in	5.0000 in	2
	0.6250 in	2.2500 in	1.0000 in	0.6250 in	5.0000 in	2
	0.7500 in	2.2500 in	1.0000 in	0.7500 in	5.0000 in	2
	0.7500 in	1.8750 in	0.7500 in	0.7500 in	4.0000 in	2
